Enhanced cryo–electron microscopy (cryo-EM) is being extended with a laser-based contrast enhancement technique that may significantly improve the visibility of small and weakly scattering proteins.
Cryo-EM has become a central method in structural biology by flash-freezing proteins and imaging them with electron beams, followed by computational reconstruction of their three-dimensional structure. This approach has enabled detailed visualization of large macromolecular assemblies such as ribosomes and viruses, which were previously difficult or impossible to resolve using x-ray crystallography.
However, the method has a fundamental limitation when it comes to small proteins. These molecules do not strongly scatter electrons; instead, they primarily induce phase shifts in the electron wavefront. Because conventional detectors are much more sensitive to intensity changes than phase changes, the resulting signal is weak and often indistinguishable from background noise. As a result, many biologically important targets, including membrane proteins and signaling complexes, remain close to or below the practical detection threshold of current instruments.
The core issue in cryo-EM is therefore not the absence of signal, but its form: small proteins encode information mainly in phase rather than amplitude. A conceptual solution to this problem dates back to Frits Zernike, who developed the optical phase plate in the 1930s to convert phase shifts into visible intensity contrast in light microscopy. This invention was later recognized with the Nobel Prize.
Attempts to translate this idea to electron microscopy involved inserting thin physical phase plates made of materials such as carbon or silicon nitride into the electron beam path. While these devices could enhance contrast, they introduced practical complications, including charging effects, contamination, and optical distortions, as well as limited operational stability.

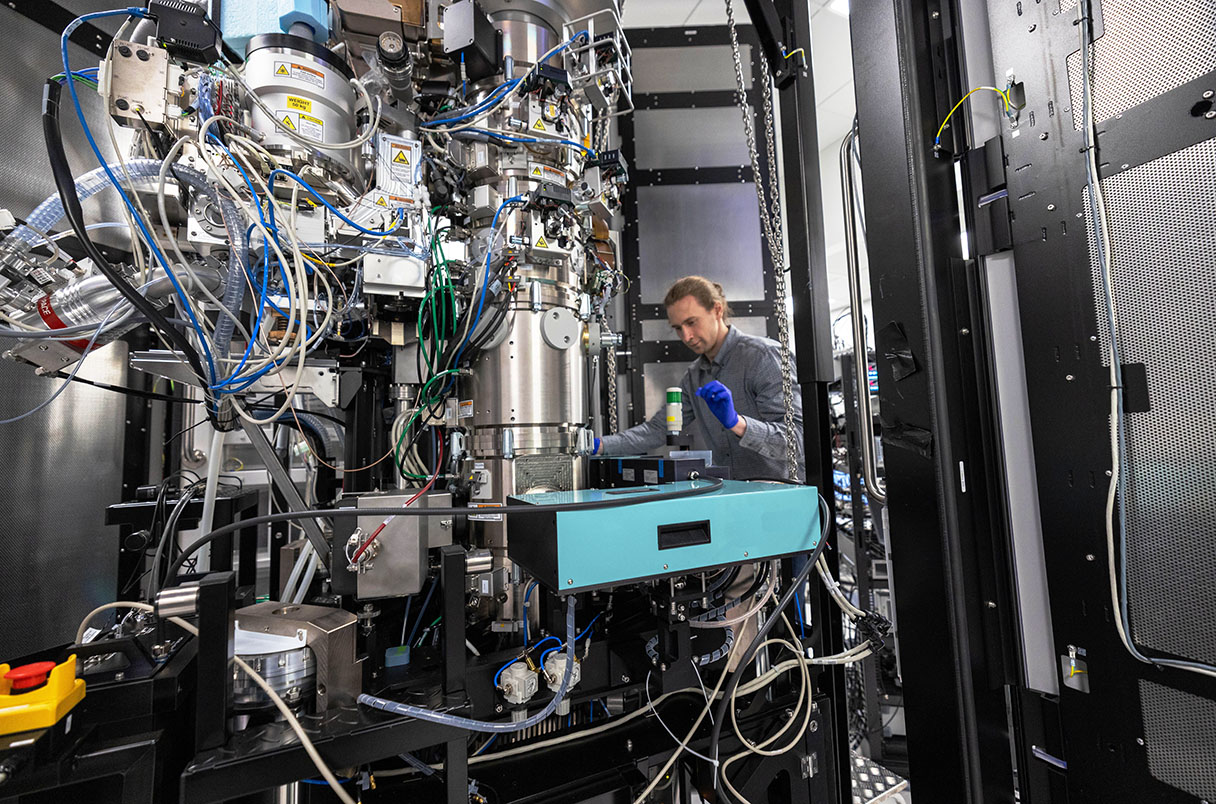

Researchers at UC Berkeley have proposed an alternative approach in which the physical phase plate is replaced by an optical field. In this system, a high-intensity laser beam is directed across the path of the electron beam. The laser is confined between mirrors, forming a standing wave with extremely high electromagnetic field strength. This field interacts with the passing electrons and modifies their phase without introducing any physical object into the beam path.
The key advantage of this design is that it avoids the material-related limitations of traditional phase plates, while still enabling controlled phase modulation of the electron wavefront.
The system was tested using hemoglobin, a protein that lies near the lower size limit for conventional cryo-EM. In comparative experiments, the same sample was imaged with and without the laser-based phase plate. Without the laser enhancement, the reconstruction reached a resolution of approximately 4.46 angstroms and appeared relatively blurred. With the laser phase plate enabled, the reconstruction improved to approximately 3.09 angstroms, with substantially clearer structural detail across the molecule.
A further development of the method introduces a second laser oriented orthogonally to the first. This dual-laser configuration is designed to reduce optical aberrations, distribute optical нагрузку more evenly, and minimize heating effects that could destabilize the mirror system generating the standing wave. The result is improved stability and more uniform contrast enhancement.
This version of the system has already been applied in experimental settings, including imaging of apoferritin and cryo-electron tomography of frozen yeast cells, where it enabled clearer visualization of internal cellular structures.
If developed further, the technique could expand the range of biomolecules accessible to structural analysis. Many pharmacologically relevant proteins, particularly membrane receptors, ion channels, and signaling proteins, are currently difficult to resolve using standard cryo-EM. Improved contrast at small scales could therefore accelerate drug discovery by making these targets structurally accessible.
Beyond isolated proteins, the method may eventually enable molecular-level imaging inside intact cells. This would allow researchers to observe the organization of cellular machinery in its native environment, including organelles such as lysosomes and processes relevant to neurodegenerative diseases, where protein aggregation and degradation pathways play a central role.
More broadly, higher-quality experimental structures could also serve as improved training and validation data for computational protein-structure prediction systems, strengthening the connection between experimental and AI-driven structural biology.
Despite its promise, the technology remains at an early stage of development. Laser phase plates are not yet commercially available, and their integration into routine cryo-EM workflows requires further engineering refinement. Issues related to scalability, cost, and system stability still need to be resolved before widespread adoption becomes possible.
Laser-enhanced cryo-EM represents a technical extension of an established imaging method aimed at overcoming a specific physical limitation in electron scattering contrast. Its significance lies in the possibility of extending structural biology to smaller and more weakly scattering proteins, potentially enabling a more complete view of molecular processes inside cells.
